Expedite Your Glass Tempering Preparation Process Dual Belt Glass Seamers

Dual Belt Glass Seamers Material Handling

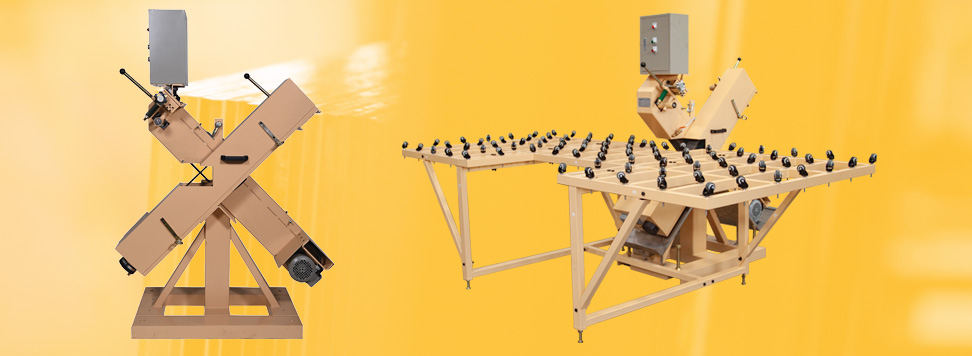

Complete your glass tempering and fabrication line with a dual-belt glass seamer from Salem Fabrication Supplies. Expedite the fabrication process by seaming rough glass edges quickly and cleanly before starting the tempering processes. We have options for both wet and dry applications.

4x106 in – Wet Dual Belt Glass Seamer    KS-HHH106W
4x106 in – Dry Dual Belt Glass Seamer    KS-HHH106D


  • High transparency
  • Power Connection Method: Circuit Breaker + Magnetic Switch/Overload
  • Motor HP: 1HP * 2EA
  • Exchange Device for Belt: Tension Spring
  • Pulley Material: Crown Pulley AL + NBR coating
  • Pulley Type: Pulley + Spindle in rotation together
  • Optional caster table available


  • Working Envelope: 26x73x50 in
  • Weight: 557 lbs
  • Working Height: 33-37 in
  • Belt Size: 4x106 in
  • Power Supply: AP 220/440V 1P 50/60Hz
